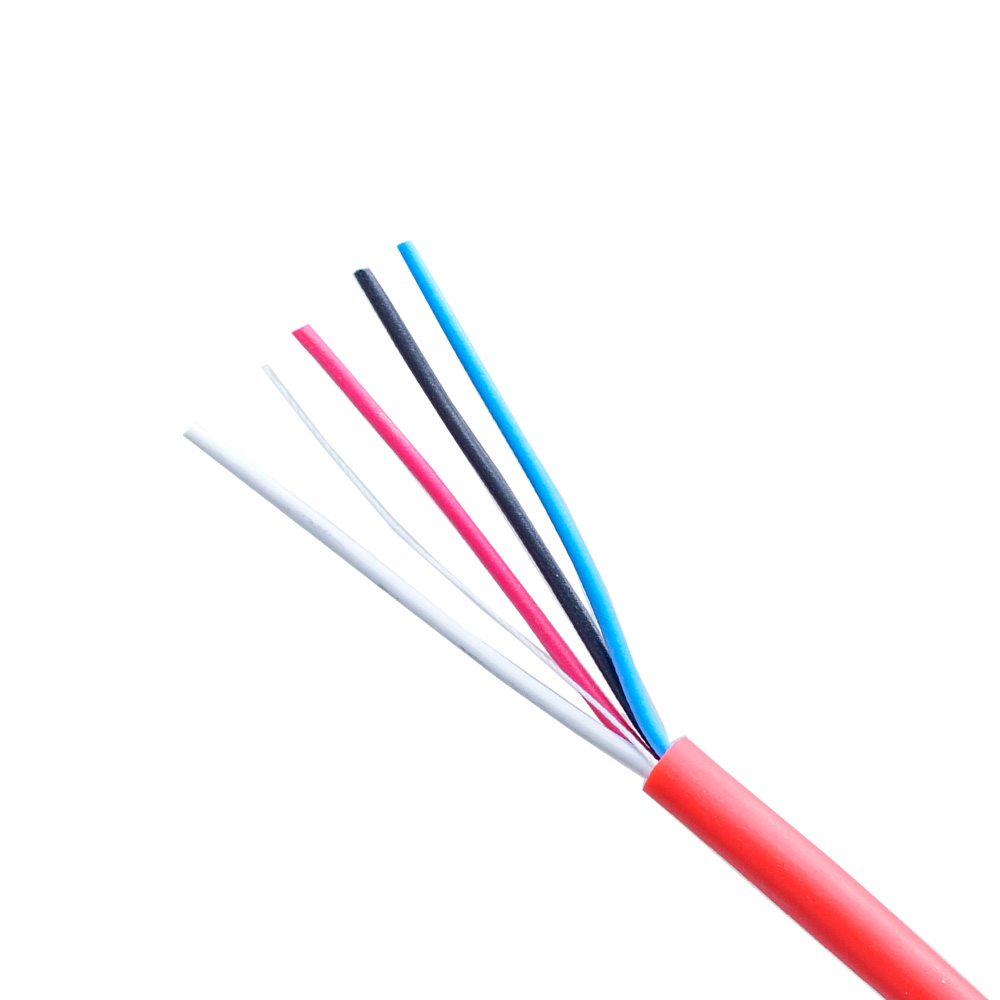

ALARM CABLE UNSHIELD

Send Inquiry
  • Product Detail

Suitable for Evacuation Systems, Smoke Detectors, Fire alarm systems, Burglar alarms, Dedicated Fire Protective Circuits.



Configuration:

Conductor:  0.2/ 0.22mm²   Bare  Copper
Insulation:  0.25±0.01mm Frame Retardant PVC
Cores:  2-40
Sheath:  Frame Retardant PVC



Mechanical Properties:

Elongation: Min. 300%
Temperature Range: -20 up to +75° C
Tensile Strength: Min 1.68kg/mm²

Technical Performance:

No.of cores x mm² No. / Dia. Insulation thickness O.D (approx.)
Inch AWG mm Inch mm Inch mm
2 x 0,22 0.0236 24 7/0,20 0.01 0.25 0.138 3.2
4 x 0,22 0.0236 24 7/0,20 0.01 0.25 0.138 3.5
6 x 0,22 0.0236 24 7/0,20 0.01 0.25 0.165 4.2
8 x 0,22 0.0236 24 7/0,20 0.01 0.25 0.181 4.6
10 x 0,22 0.0236 24 7/0,20 0.01 0.25 0.208 5.2
2 x 0,22 + 2 x 0,50 0.0236 24 7/0,20   16/0,20  0.01 / 0.0118 0.25 / 0.30 0.1417 3.6
4 x 0,22 + 2 x 0,50 0.0236 24 7/0,20   16/0,20   0.01 / 0.0118 0.25 / 0.30 0.157 4
6 x 0,22 + 2 x 0,50 0.0236 24 7/0,20   16/0,20  0.01 / 0.0118 0.25 / 0.30 0.177 4.5
8 x 0,22 + 2 x 0,50 0.0236 24 7/0,20   16/0,20  0.01 / 0.0118 0.25 / 0.30 0.205 5.2
10 x 0,22 + 2 x 0,50 0.0236 24 7/0,20   16/0,20  0.01 / 0.0118 0.25/ 0.30 0.213 5.4
12 x 0,22 + 2 x 0,50 0.0236 24 7/0,20   16/0,20  0.01 / 0.0118 0.25 / 0.30 0.221 5.6
2 x 0,22 + 2 x 0,75 0.0236 24 7/0,20   24/0,20  0.009 / 0.0118 0.25 / 0.35 0.193 4.9
4 x 0,22 + 2 x 0,75 0.0236 24 7/0,20   24/0,20  0.009 / 0.0118 0.25 / 0.35 0.205 5.2
6 x 0,22 + 2 x 0,75 0.0236 24 7/0,20   24/0,20 0.009 / 0.0118 0.25 / 0.35 0.213 5.4
8 x 0,22 + 2 x 0,75 0.0236 24 7/0,20   24/0,20 0.009 / 0.0118 0.25 / 0.35 0.228 5.8
10 x 0,22 + 2 x 0,75 0.0236 24 7/0,20   24/0,20 0.009 / 0.0118 0.25 / 0.35 0.244 6.2
12 x 0,22 + 2 x 0,75 0.0236 24 7/0,20   24/0,20 0.009 / 0.0118 0.25 / 0.35 0.26 6.6
